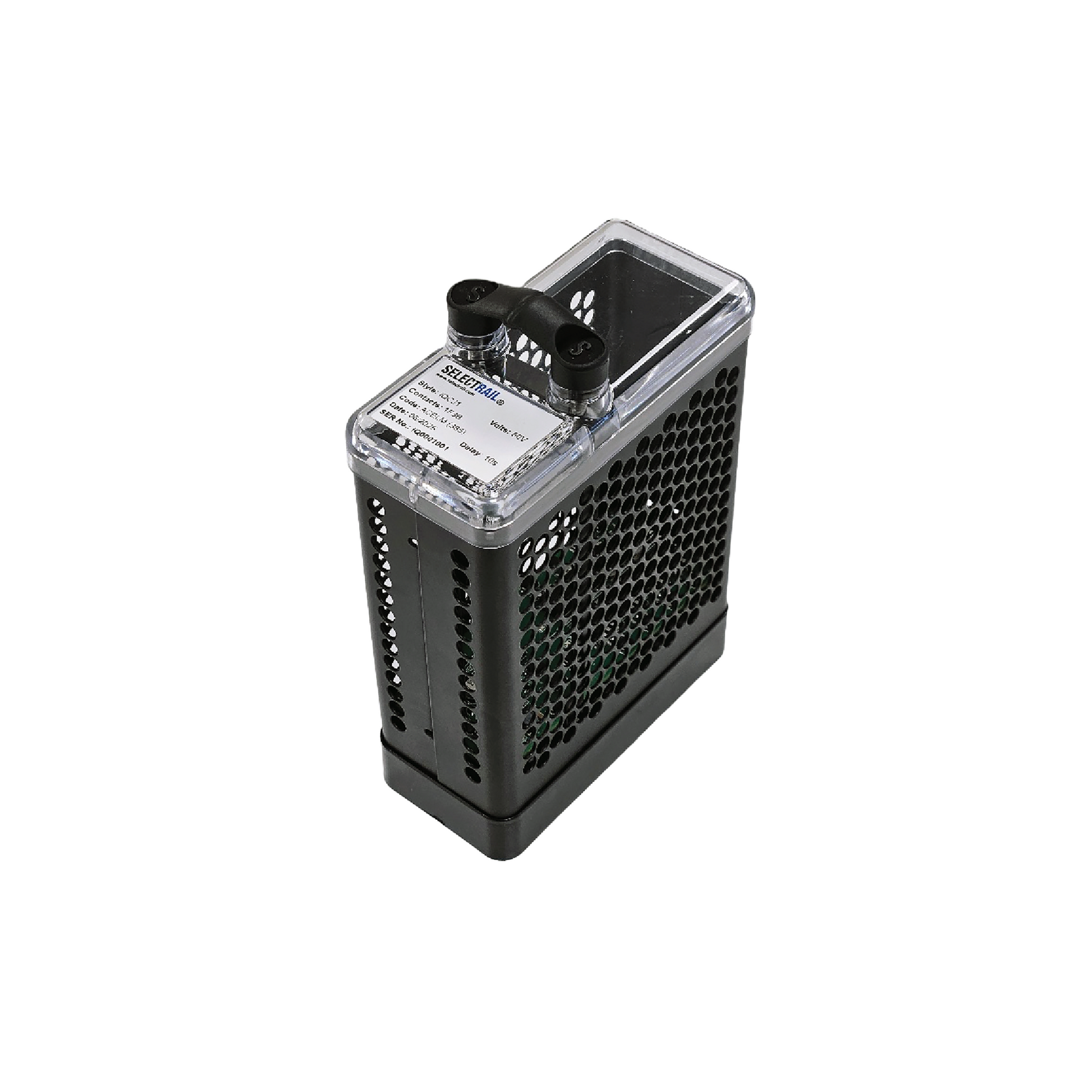

SELECTiQ: Solid State, Q Relay (iQCJ1)

A non-safety relay used in point control circuits to disconnect the circuit within a pre-determined time.

Features

• 100% Solid state: No moving parts
• Safety Integrity Level: Non-Safety Critical
• DC biased
• AC & DC switching
• Contact arrangement: = 1F 3B (see datasheet)
• 7.5 sec and 10 sec delay models available
• Low power consumption
• Nominal voltages:
• = 50V DC
  • Pick voltage: = 36V
  • Drop voltage: = 25V
• = 24V DC
  • Pick voltage: = 11V
  • Drop voltage: = 15V

• Approx front contact resistance: = 50mΩ
• Approx back contact resistance: = 150mΩ
• Weight: 0.5kg

Remarks

• Other time delays available on request

View our technical datasheet
