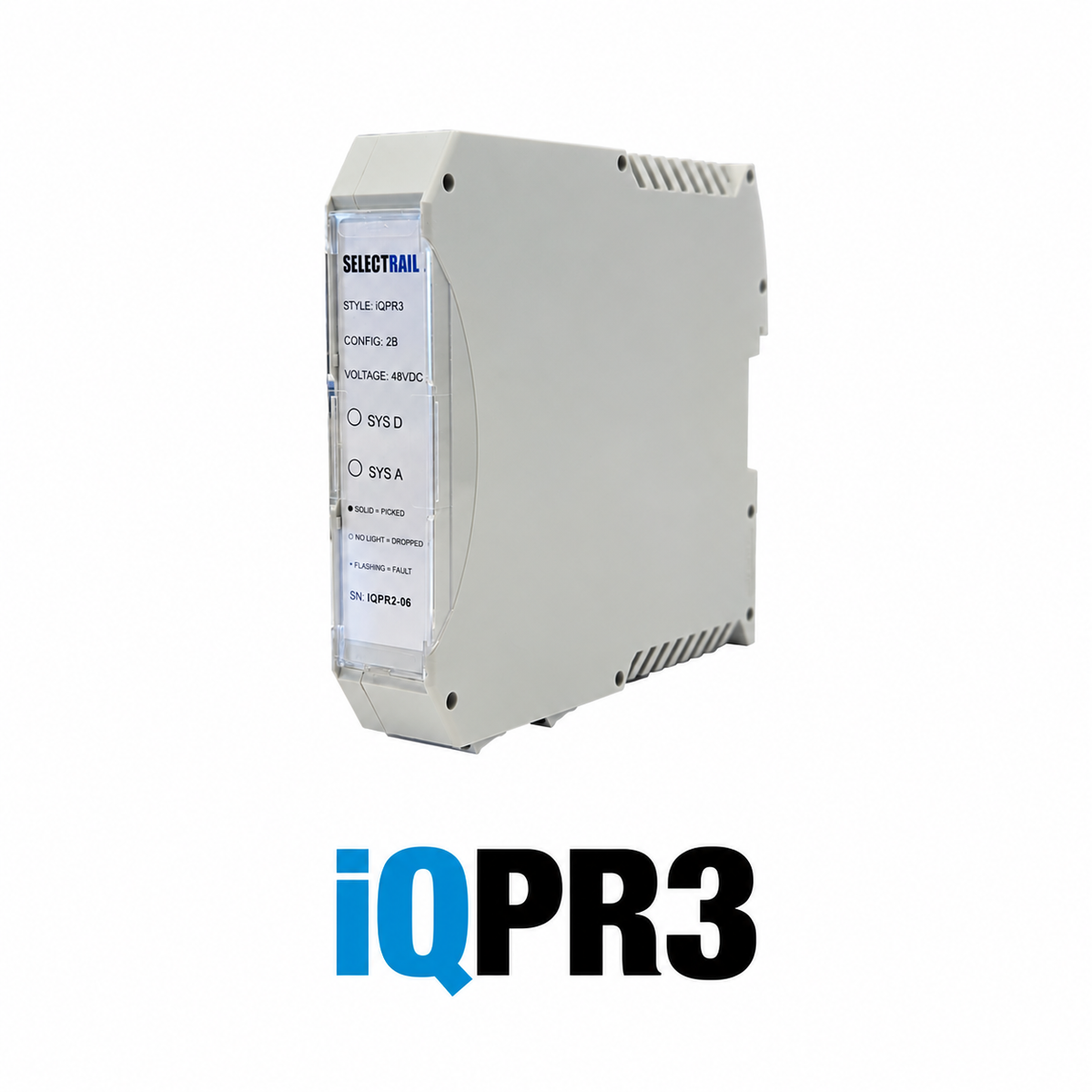

The iQPR3 flasher relay expands the DIN-RAIL iQ range with a 110V AC coil and 80 flashes per minute.
Developed by Selectrail Australia, the DIN-RAIL mountable iQ relay range builds on our SELECTiQ solid-state signalling technology. Initially developed for the benefit of ProRail Netherlands, the range delivers more capability in less space.
Features
100% solid state: No moving parts
DIN-RAIL mountable
Compact size: 23mm width and 75% less volume than incumbent solutions
Safety Integrity Level: SIL4 architecture
ZERO maintenance: No hard wiring changes, customer testing, batteries or additional power supply required. Only coil supply is needed, as with traditional Q-style relays.
Flash rate: 80 flashes per minute (FPM)
Nominal coil voltage: 110 VAC
Contact arrangement: 2B, two back (normally closed) contacts that alternate between open and closed
